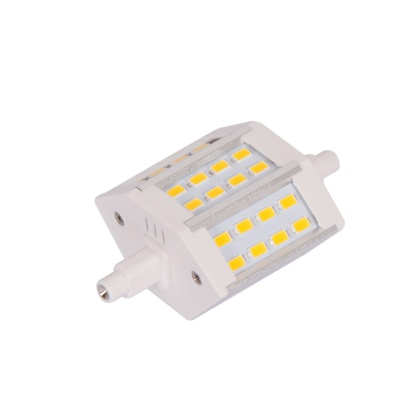

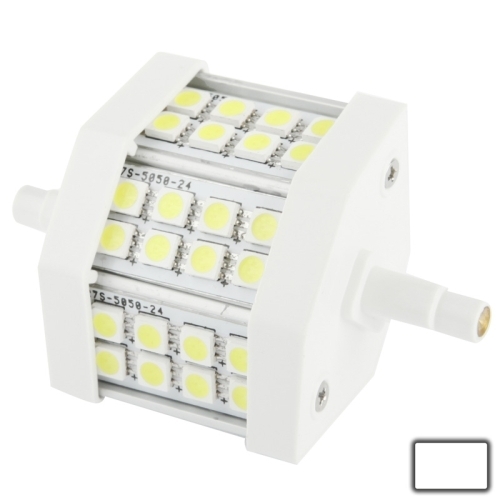

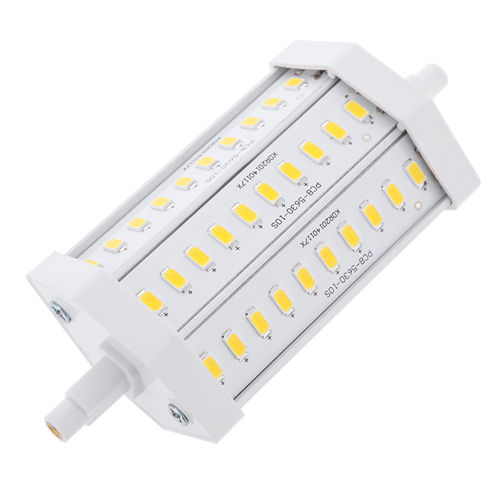

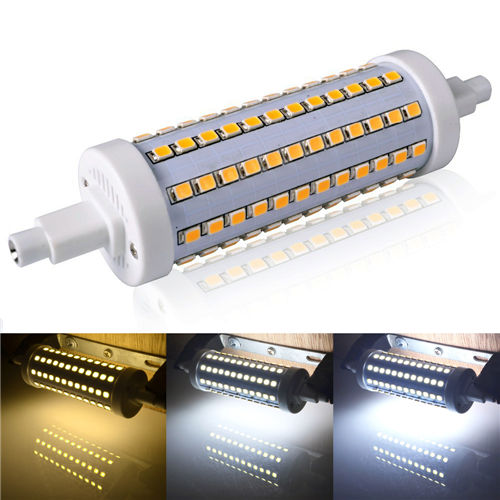

Masonanic LED R7S Light 5050SMD 5630SMD
- LED Chip: 5050SMD 5630SMD
- Watts:5W 8W 10W 12W 15W 16W 18W 20W 30W 40W 50W
- CE/RoHs/TUV
- 3 Years Warranty
- Masonanic LED R7S Light 5050SMD 5630SMD 5W 8W 10W 12W 15W 16W 18W 20W 30W 40W 50W
製品紹介
| Full R7S Series | |||||||||||
| Product Code | Model | Materails | Description | Power | Type | CCT | Lumen | CRI | PF | Packaging Size | |
| Dimmension | |||||||||||
| MS-R7S78-5W-A | 5050SMD | ￠78*50*31mm | Aluminum+PC | Voltage: AC85-265V 50/60Hz | 5W | Non-Dimmable | 2700-6000K | 400-500lm | 80 | 0.5 |
Inner Box: 90*60*43MM Master box: Qty: ? pcs/carton G.W/N.W:100 g/Box |
| LED Type: 2835SMD pcs | |||||||||||
| LED Chip: Epistar | |||||||||||
| Beam angle:200° | Dimmable | ||||||||||
| Warranty: 2 Years | |||||||||||
| Lifespan: 50000hrs | |||||||||||
| MS-R7S118-8W-A | 5050SMD | ￠118*50*31mm | Aluminum+PC | Voltage: AC85-265V 50/60Hz | 8W | Non-Dimmable | 2700-6000K | 650-750lm | 80 | 0.5 |
Inner Box: 125*60*43MM Master box: Qty: ? pcs/carton G.W/N.W: 140g/Box |
| LED Type: 2835SMD 42pcs | |||||||||||
| LED Chip: Epistar | |||||||||||
| Beam angle:200° | Dimmable | ||||||||||
| Warranty: 2 Years | |||||||||||
| Lifespan: 50000hrs | |||||||||||
| MS-R7S118-10W-A | 5050SMD | ￠118*50*31mm | Aluminum+PC | Voltage: AC85-265V 50/60Hz | 10W | Non-Dimmable | 2700-6000K | 800-900lm | 80 | 0.5 |
Inner Box: 125*60*43MM Master box: Qty: ? pcs/carton G.W/N.W:140 g/Box |
| LED Type: 2835SMD 54pcs | |||||||||||
| LED Chip: Epistar | |||||||||||
| Beam angle:200° | Dimmable | ||||||||||
| Warranty: 2 Years | |||||||||||
| Lifespan: 50000hrs | |||||||||||
| MS-R7S135-12W-A | 5050SMD | ￠135*50*31mm | Aluminum+PC | Voltage: AC85-265V 50/60Hz | 12W | Non-Dimmable | 2700-6000K | 1000-1100lm | 80 | 0.5 |
Inner Box: 195*60*43MM Master box: Qty: ? pcs/carton G.W/N.W: 140g/Box |
| LED Type: 2835SMD 60pcs | |||||||||||
| LED Chip: Epistar | |||||||||||
| Beam angle:200° | Dimmable | ||||||||||
| Warranty: 2 Years | |||||||||||
| Lifespan: 50000hrs | |||||||||||
| MS-R7S189-13W-A | 5050SMD | ￠189*50*31mm | Aluminum+PC | Voltage: AC85-265V 50/60Hz | 13W | Non-Dimmable | 2700-6000K | 1050-1150lm | 80 | 0.5 |
Inner Box: 195*60*43MM Master box: Qty: ? pcs/carton G.W/N.W: 160g/Box |
| LED Type: 2835SMD pcs | |||||||||||
| LED Chip: Epistar | |||||||||||
| Beam angle:200° | Dimmable | ||||||||||
| Warranty: 2 Years | |||||||||||
| Lifespan: 50000hrs | |||||||||||
| MS-R7S189-15W-A | 5050SMD | ￠189*50*31mm | Aluminum+PC | Voltage: AC85-265V 50/60Hz | 15W | Non-Dimmable | 2700-6000K | 1200-1300lm | 80 | 0.5 |
Inner Box: 195*60*43MM Master box: Qty: ? pcs/carton G.W/N.W: 160g/Box |
| LED Type: 2835SMD 72pcs | |||||||||||
| LED Chip: Epistar | |||||||||||
| Beam angle:200° | Dimmable | ||||||||||
| Warranty: 2 Years | |||||||||||
| Lifespan: 50000hrs | |||||||||||
| MS-R7S189-18W-A | 5050SMD | ￠189*50*31mm | Aluminum+PC | Voltage: AC85-265V 50/60Hz | 18W | Non-Dimmable | 2700-6000K | 1400-1500lm | 80 | 0.5 |
Inner Box: 195*60*43MM Master box: Qty: ? pcs/carton G.W/N.W: 160g/Box |
| LED Type: 2835SMD 84pcs | |||||||||||
| LED Chip: Epistar | |||||||||||
| Beam angle:200° | Dimmable | ||||||||||
| Warranty: 2 Years | |||||||||||
| Lifespan: 50000hrs | |||||||||||
| MS-R7S78-8W-C | 5630SMD | ￠78*45*40mm | Aluminum+PC | Voltage: AC85-265V 50/60Hz | 8W | Non-Dimmable | 2700-6000K | 700lm | 80 | 0.5 |
Inner Box: 95*60*43MM Master box: Qty: ? pcs/carton G.W/N.W: 60g/Box |
| LED Type: 2835SMD pcs | |||||||||||
| LED Chip: Epistar | |||||||||||
| Beam angle:200° | Dimmable | ||||||||||
| Warranty: 2 Years | |||||||||||
| Lifespan: 50000hrs | |||||||||||
| MS-R7S118-14W-C | 5630SMD | ￠118*45*40mm |
Aluminum+PC with fan |
Voltage: AC85-265V 50/60Hz | 14W | Non-Dimmable | 2700-6000K | 1300lm | 80 | 0.5 |
Inner Box: 125*60*43MM Master box: Qty: ? pcs/carton G.W/N.W: 90g/Box |
| LED Type: 2835SMD pcs | |||||||||||
| LED Chip: Epistar | |||||||||||
| Beam angle:200° | Dimmable | ||||||||||
| Warranty: 2 Years | |||||||||||
| Lifespan: 50000hrs | |||||||||||
| MS-R7S135-16W-C | 5630SMD | ￠135*45*40mm |
Aluminum+PC with fan |
Voltage: AC85-265V 50/60Hz | 16W | Non-Dimmable | 2700-6000K | 1500lm | 80 | 0.5 |
Inner Box: 145*60*43MM Master box: Qty: ? pcs/carton G.W/N.W: 140g/Box |
| LED Type: 2835SMD pcs | |||||||||||
| LED Chip: Epistar | |||||||||||
| Beam angle:200° | Dimmable | ||||||||||
| Warranty: 2 Years | |||||||||||
| Lifespan: 50000hrs | |||||||||||
| MS-R7S189-20W-C | 5630SMD | ￠189*45*40mm |
Aluminum+PC with fan |
Voltage: AC85-265V 50/60Hz | 20W | Non-Dimmable | 2700-6000K | 1900lm | 80 | 0.5 |
Inner Box: 195*60*43MM Master box: Qty: ? pcs/carton G.W/N.W: 160g/Box |
| LED Type: 2835SMD pcs | |||||||||||
| LED Chip: Epistar | |||||||||||
| Beam angle:200° | Dimmable | ||||||||||
| Warranty: 2 Years | |||||||||||
| Lifespan: 50000hrs | |||||||||||
| MS-R7S118-30W-C | 5630SMD | ￠118*55*40mm |
Aluminum+PC with fan |
Voltage: AC85-265V 50/60Hz | 30W | Non-Dimmable | 2700-6000K | 2400lm | 80 | 0.5 |
Inner Box: 125*60*43MM Master box: Qty: ? pcs/carton G.W/N.W: 250g/Box |
| LED Type: 2835SMD pcs | |||||||||||
| LED Chip: Epistar | |||||||||||
| Beam angle:200° | Dimmable | ||||||||||
| Warranty: 2 Years | |||||||||||
| Lifespan: 50000hrs | |||||||||||
| MS-R7S135-40W-C | 5630SMD | ￠135*55*40mm |
Aluminum+PC with fan |
Voltage: AC85-265V 50/60Hz | 40W | Non-Dimmable | 2700-6000K | 3500lm | 80 | 0.5 |
Inner Box: 145*60*43MM Master box: Qty: ? pcs/carton G.W/N.W: 250g/Box |
| LED Type: 2835SMD pcs | |||||||||||
| LED Chip: Epistar | |||||||||||
| Beam angle:200° | Dimmable | ||||||||||
| Warranty: 2 Years | |||||||||||
| Lifespan: 50000hrs | |||||||||||
| MS-R7S189-50W-C | 5630SMD | ￠189*55*40mm |
Aluminum+PC with fan |
Voltage: AC85-265V 50/60Hz | 50W | Non-Dimmable | 2700-6000K | 4700lm | 80 | 0.5 |
Inner Box: 125*60*43MM Master box: Qty: ? pcs/carton G.W/N.W: 350g/Box |
| LED Type: 2835SMD pcs | |||||||||||
| LED Chip: Epistar | |||||||||||
| Beam angle:360° | Dimmable | ||||||||||
| Warranty: 2 Years | |||||||||||
| Lifespan: 50000hrs | |||||||||||
